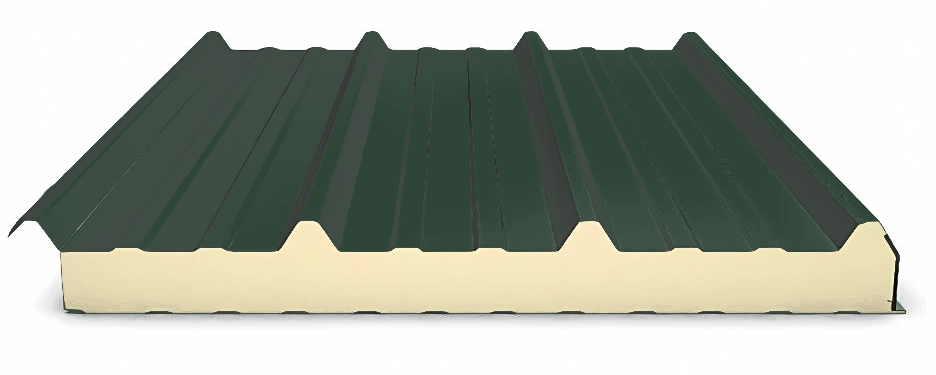

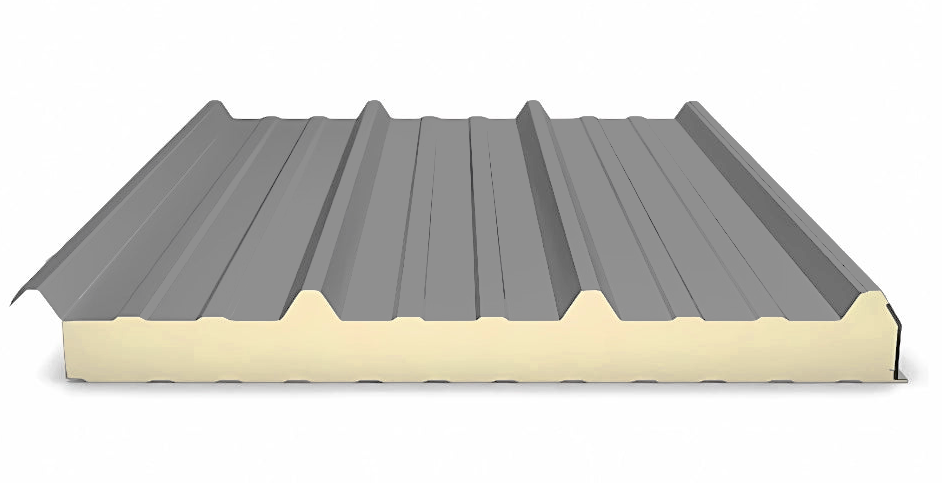

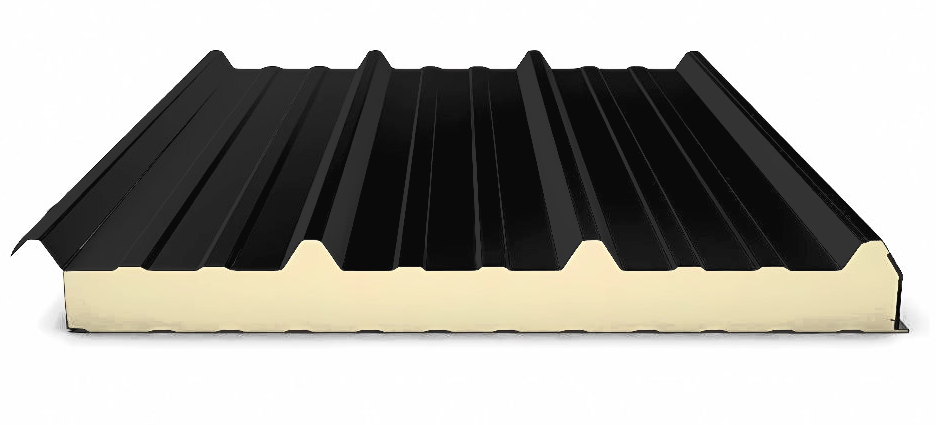

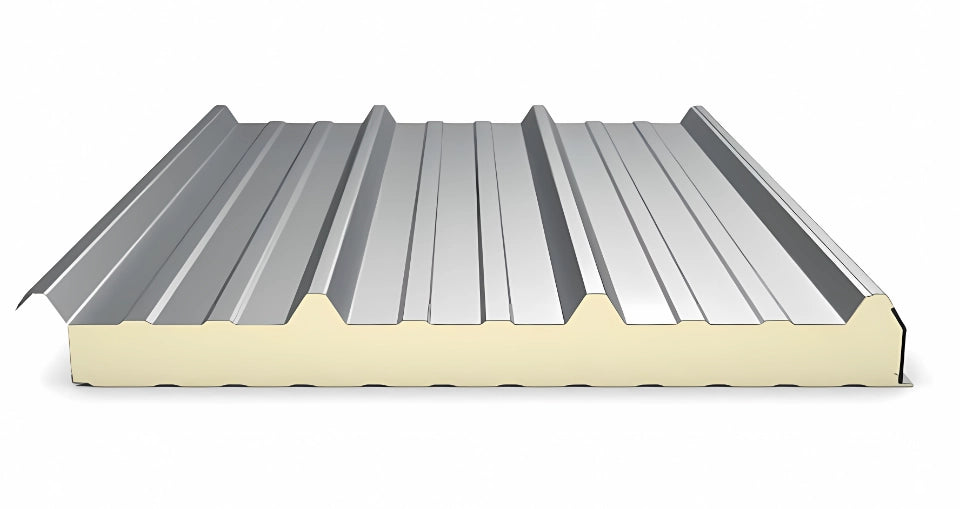

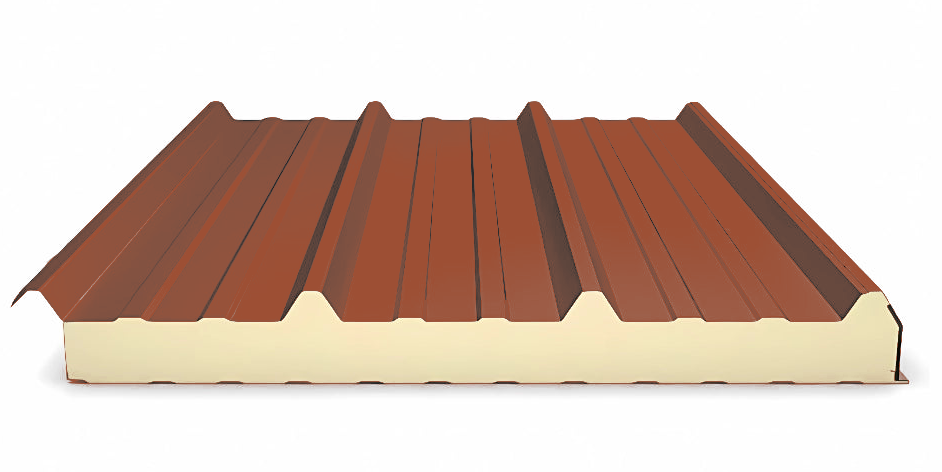

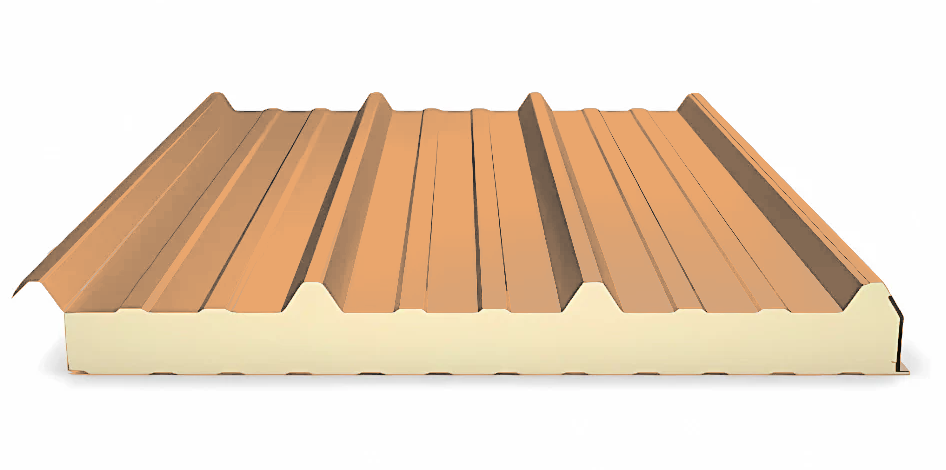

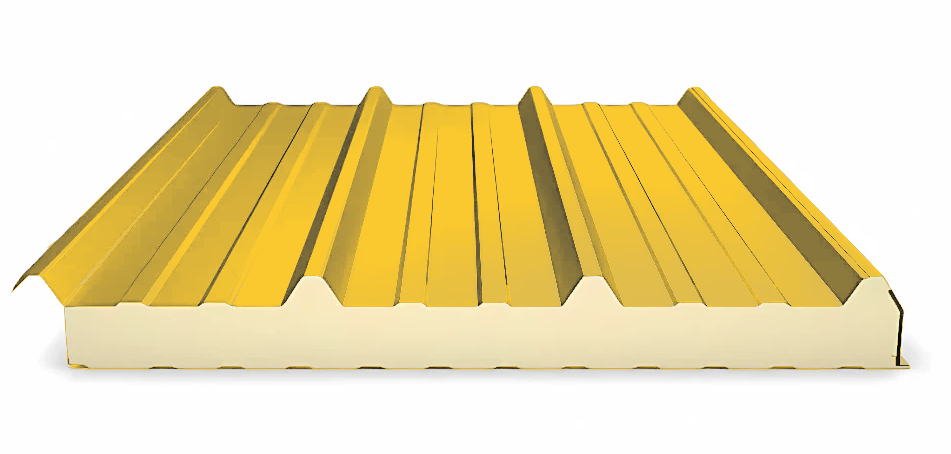

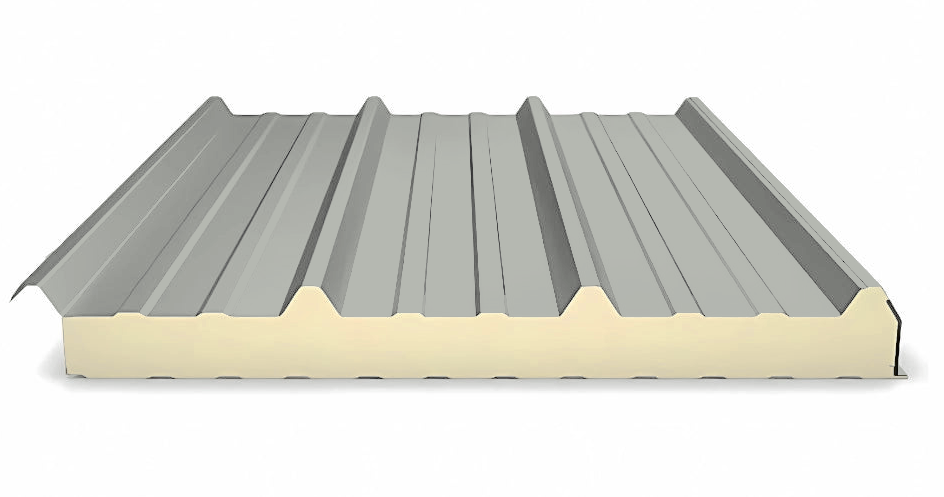

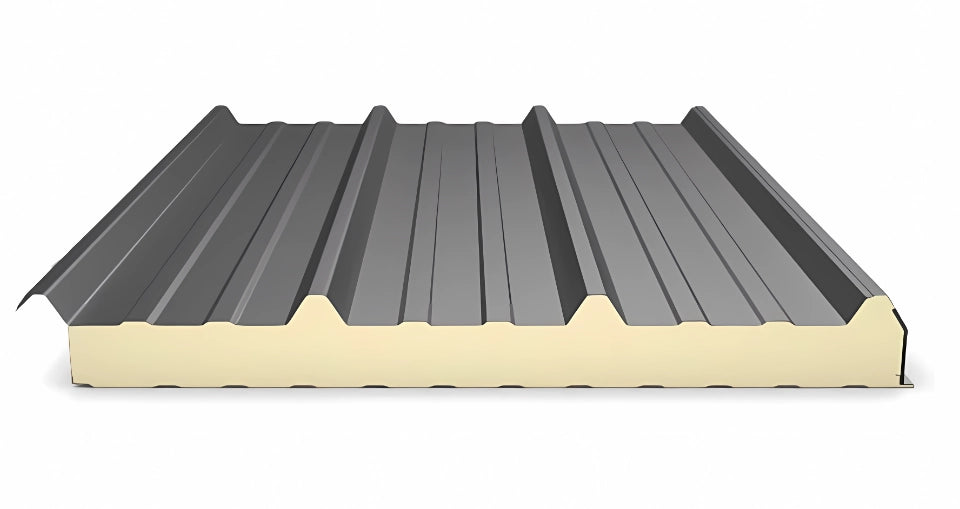

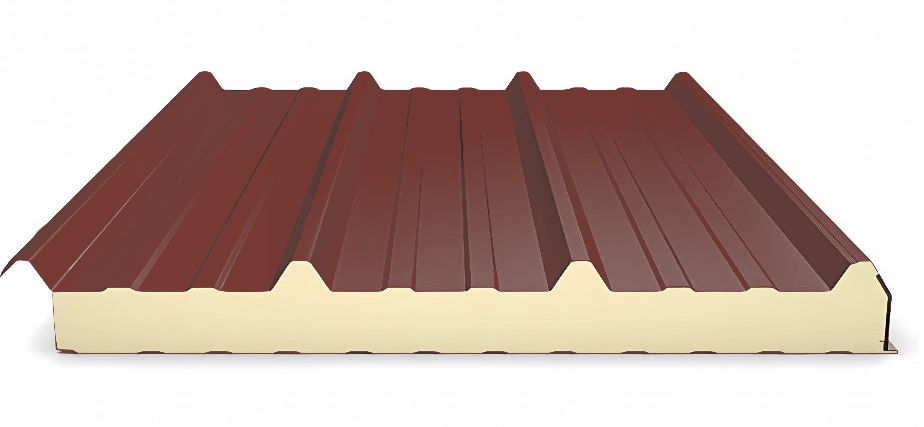

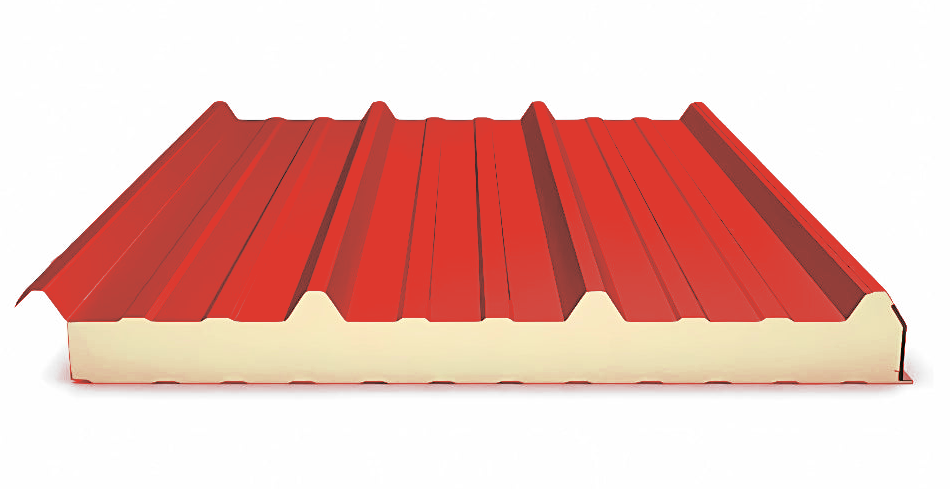

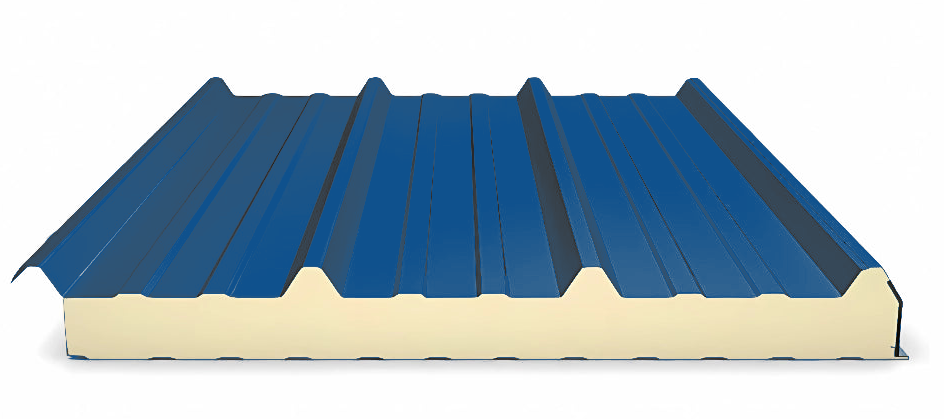

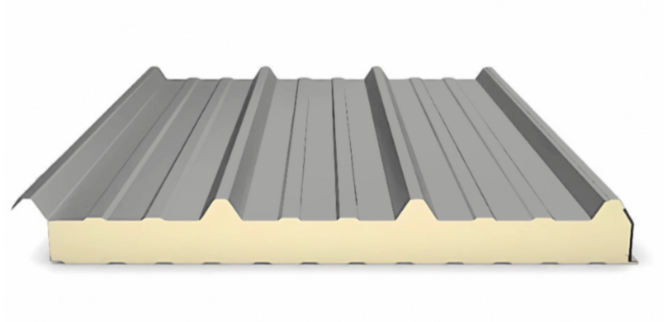

Technical characteristics

Exterior : Ribbed steel sheet, 0.60 mm thick, lacquered for optimum protection against the elements.

Insulating core: Rigid polyurethane foam, available in thicknesses from 30 mm to 100 mm, offering excellent thermal resistance.

Interior: Lacquered aluminum sheet for a clean finish.

Dimensions

Useful width: 1 m

Length: from 2.10 m to 12.25 m

Weight: Between 8 and 14 kg depending on the thickness

Available lengths:

The panels are cut to size in the factory in multiples of 35 cm.

2,100 mm, 2,450 mm, 2,800 mm, 3,150 mm, 3,500 mm, 3,850 mm, 4,200 mm, 4,550 mm, 4,900 mm, 5,250 mm, 5,600 mm, 5,950 mm, 6,300 mm, 6,650 mm, 7,000 mm, 7,350 mm, 7,700 mm, 8,050 mm, 8,400 mm, 8,750 mm, 9,100 mm, 9,450 mm, 9,800 mm, 10,150 mm, 10,500 mm, 10,850 mm, 11,200 mm, 11,550 mm, 11,900 mm, 12,250 mm

Waves: 3 models available:

3 waves of 30mm

4 waves of 30 mm

5 waves of 35 mm

Thicknesses / Insulation Performance

30 mm: R-value = 1.36 m².K/W

40 mm: R-value = 1.82 m².K/W

50 mm: R-value = 2.27 m².K/W

60 mm: R-value = 2.73 m².K/W

80 mm: R-value = 3.64 m².K/W

100 mm: R-value = 4.55 m².K/W

Performance and technical advantages

Certified insulation : ACERMI certified panels, guaranteeing recognized, measured and controlled thermal resistance.

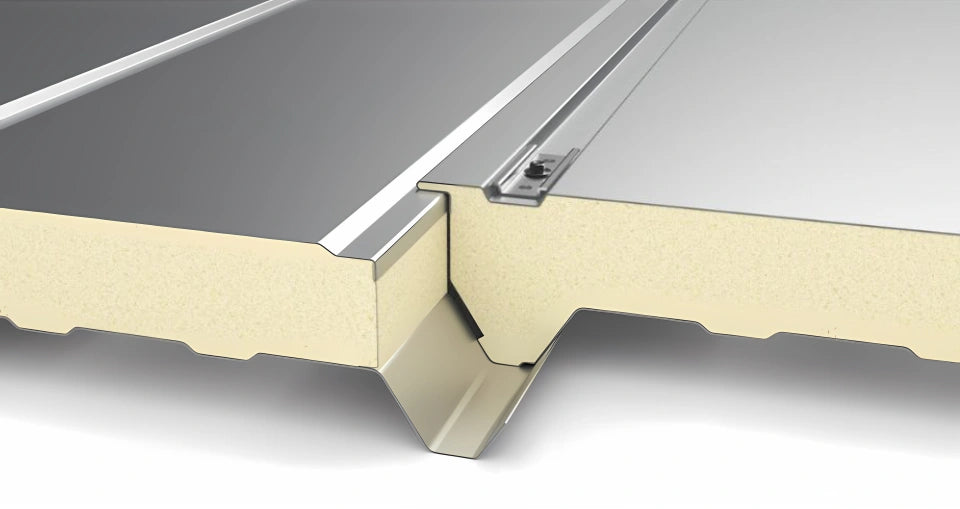

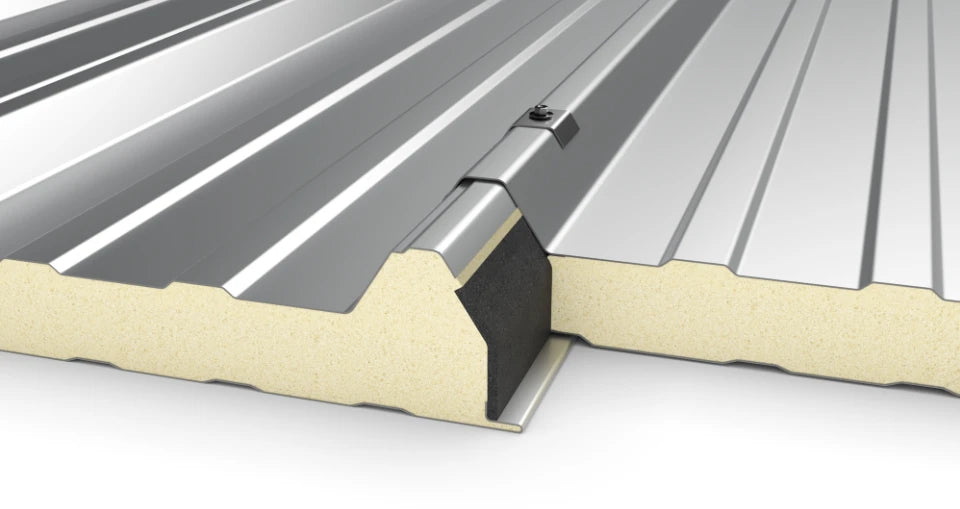

Excellent sealing : The interlocking system with integrated seal ensures optimal air and water tightness, while limiting thermal bridges.

Fire protection : Classified Broof (t3) and reaction to fire B-s2,d0 , compliant with regulatory safety requirements.

Ease of installation : Large usable width, lightweight panels cut to size for quick installation.

High-performance thermal insulation : Thanks to their compact structure, the panels effectively limit heat loss and contribute to interior comfort.

Strength and durability : Made from coated galvanized steel, they offer excellent resistance to corrosion, external aggressions and fungal agents, for maximum longevity and reduced maintenance.

Optimization of the framework : Their load-bearing capacity makes it possible to reduce the number of supports required, generating savings on the structure.

Simplified fixing : Quick installation thanks to a visible and intuitive fixing system.

Frequently Asked Questions:

What are the delivery times?

For the Steel Tray model, the delivery time is between 4 and 8 weeks. It may vary depending on the selected wave profile, the thickness of the panels, and the chosen color.

What is the price of an insulated steel tray?

The price of an insulated steel deck depends on several factors, including the thickness of the insulation, the type of finish, and the surface area to be covered. Depending on the quantity requested, prices start at €22.10/m².
